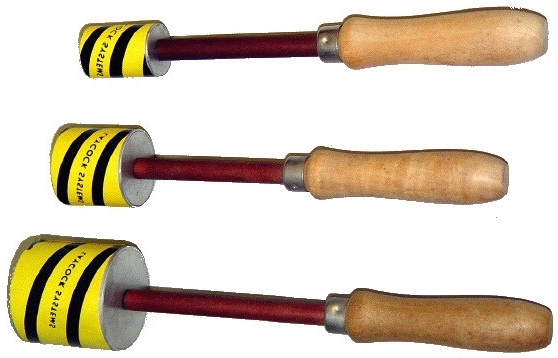

This handy hand-held magnetic field rotation indicating tool is unique in its construction and is mechanically designed to give long life just like our other fine Laycock tough products.  Each unit is "High Potential" tested to 2500 volts AC to make sure it is properly insulated. This spinning indicator (spindicator) beats the old-fashioned "ball test" for newly-wound stators and questionable old windings.  Not only can you use a lower voltage than with a steel ball or ball bearing, but you don't have to chase the ball across the shop when you finish testing.  The three sizes make it very easy to check for shorted coils, reversed coils, misconnections, and direction of rotation for single and three phase stators of any size - even linear motor stators!. What's more, you can make the same tests on three phase rotors without using a compass and a DC power supply.  Because of the spindicators' sensitivity, you can reduce your test voltage to one half or less than what you need now to "run the ball".  This means your winders and mechanics will have less chance of accidentally turning a "rotation test" into a "smoke test". Available in three sizes ranging from fractional horsepower to very large horsepower ratings, they can be purchased as a set or individually, according to your needs. This tool is the result of Laycock's commitment to make winding easier. No motor or armature winding shop should be without a complete set of these tools!



  No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.

Model #	Description	Price- US. Dollars	Packing & Handling		Weight
			Domestic	Export
LA-SPN	Spindicators - Complete set of 3 (sizes below)	$286.00	$10.00	$10.00	1Lbs
LA-SPN-1	1" (25.4 mm) Drum Diameter, overall length 8 1/2"	$105.00	$10.00	$10.00	1Lbs
LA-SPN-2	1 1/2" (38.1 mm) Drum Diameter, overall length 8 1/2"	$105.00	$10.00	$10.00	1Lbs
LA-SPN-3	2" (50.8 mm) Drum Diameter, overall length 10"	$105.00	$10.00	$10.00	1Lbs
