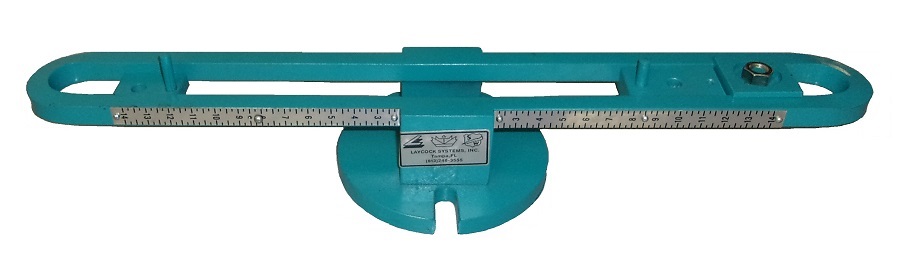

Our 19" (48.3 cm) and 25" (63.5 cm) coil winding head holders have a scale marked in inches for rapid adjustment and have a base adaptable to any known winding machine.

Equipped with the instant coil release, the coil winding head holders can accept all Laycock LA-100 and LA-300 series winding heads and are considered a major breakthrough in winding equipment!.


  • Simplicity of design

  • Sturdiness of construction

  • Ease of operation

  • Adaptability to any winding machine



NOTE: These holders are designed for "HAND" wire tension

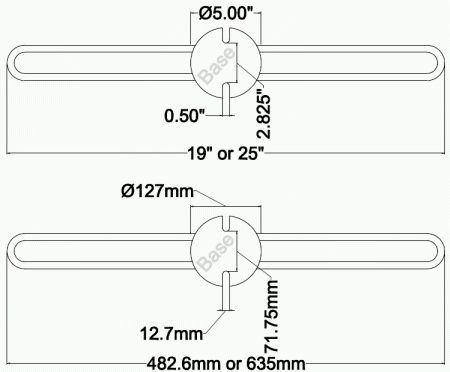

Standard Duty Holder Dimensions

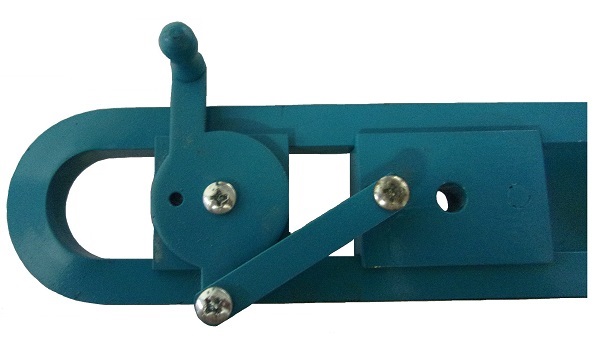

Instant Coil Release

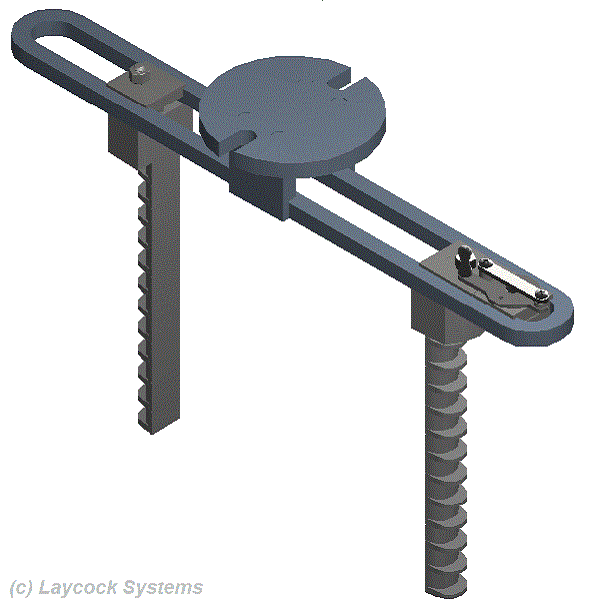

The coil winding head holder's quick release moves one head two inches (50.8 mm) with just a flip of the handle to allow the coils to be removed from the head, flip back and ready to wind next coil.Our quick release is made with the highest quality materials and craftsmanship to give long service with daily use.

  • - No sheet metal parts! - Machined from steel bar stock

  • - Eliminates the use of wrenches

  • - No stops to set

  • - Returns head to exact position every time!

  • - Fits 19" (48.3 cm) and 25" (63.5 cm) Laycock holders

  • - Saves you time and money!



Quick Release Parts



 No phone orders. P.O by fax or E-mail only.
A 4% Credit Card processing fee will be added to applicable orders.

Model # Description Price- US. Dollars Packing & Handling Weight
Domestic  Export
LA-H-19  19" (48.3 cm) Laycock Holder. $479.00 $10.00 $10.00 11Lbs
LA-HR-19  19"  (48.3 cm) Laycock Holder & Instant Coil Release. $787.00 $10.00 $10.00 13Lbs
LA-H-25   25" (63.5 cm) Laycock Holder. $501.00 $10.00 $10.00 12Lbs
LA-HR-25    25" (63.5 cm) Laycock Holder & Instant Coil Release. $807.00 $10.00 $10.00 14Lbs
LA-R   Laycock Instant Coil Release $396.00 $10.00 $10.00 1Lbs
LA-QR-4    Laycock Holder , block only (usable for both 19" & 25"). $94.00 $10.00 $10.00 1Lbs
